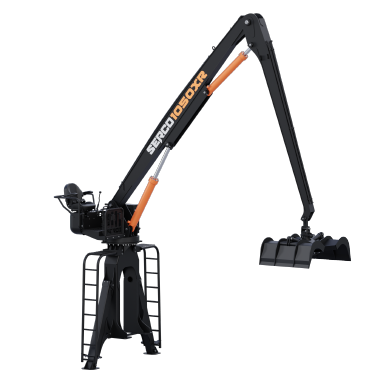

The Serco 1050XR Knuckleboom Loader shares the proven design of the iconic 8500 Series, known as the strongest loader in its class with the highest swing torque on the market. With increased lifting capacity and a heavy-duty build, the 1050XR is designed for demanding applications across forestry, tree service, railroad maintenance, scrap recycling, waste management, tree care, pole handling, pipeline work, and storm cleanup. Whether mounted on a truck or trailer, it provides the versatility and lifting power needed for tough material-handling jobs. Features include bolt-on legs, standard folding joystick controls, continuous swing rotation with a Serco hydraulic manifold, and A-frame stabilizers with a 117-3/4-inch spread at grade level. Four-wire abrasion- and weather-resistant hoses protect all pressurized lines, while Extenda-Boom options provide 26 to 29 feet of overall reach. With a lift capacity of 10,872 lbs. at a 10-foot radius, less attachment weight, the 1050XR is proudly made in the U.S.A.

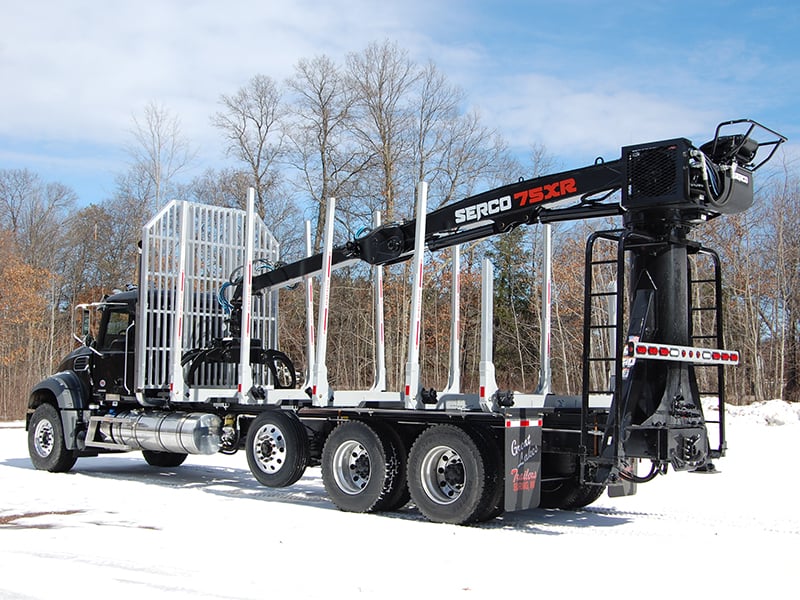

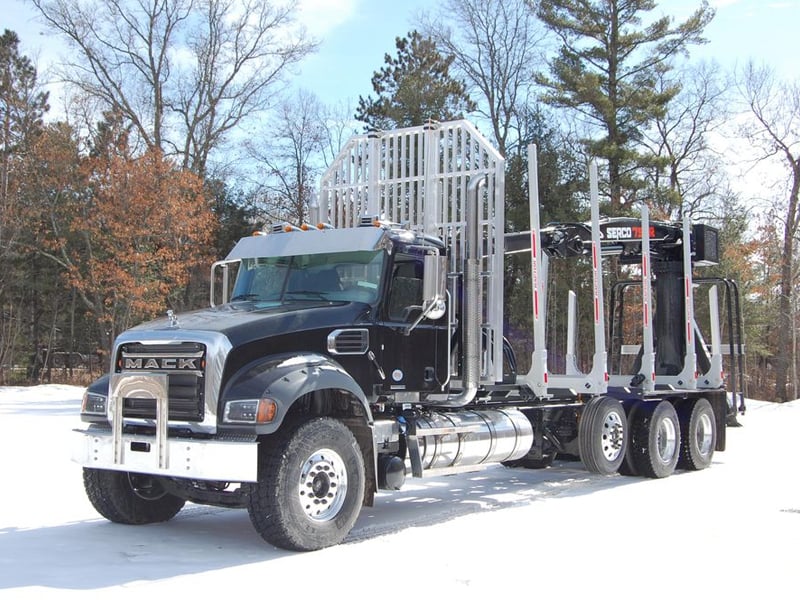

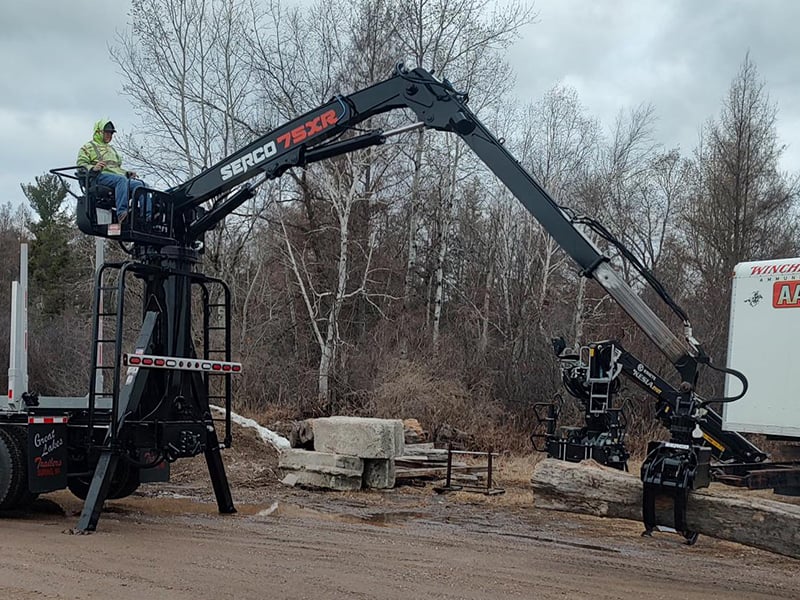

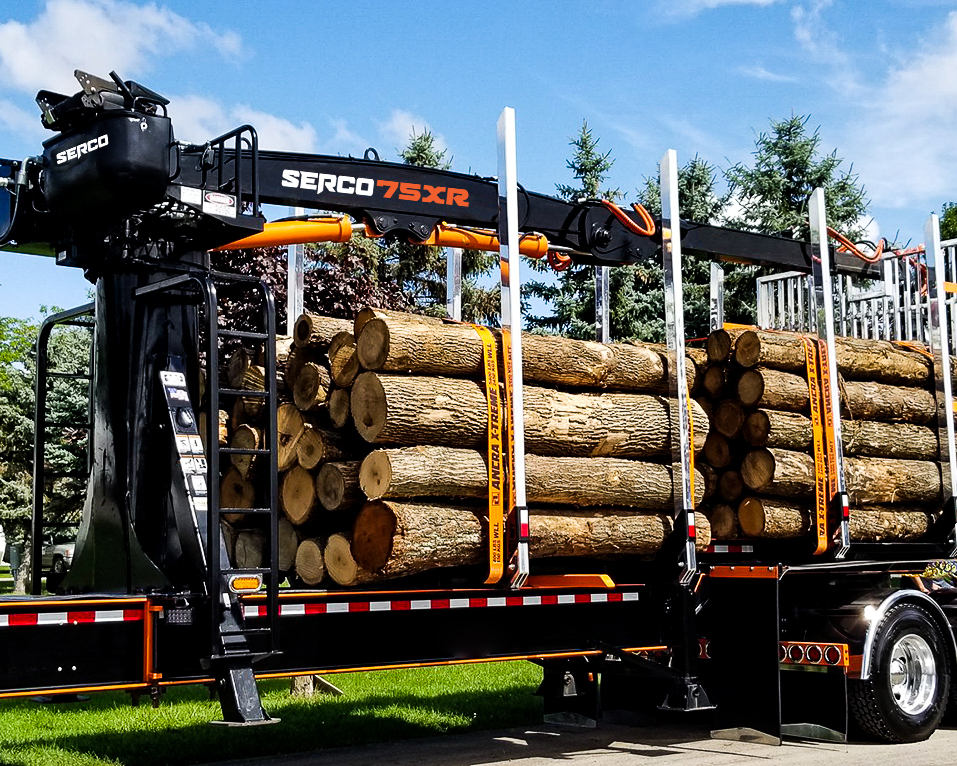

The Serco 75XR Knuckleboom Loader combines strength, reliability, and a lightweight design, making it well suited for forestry, tree care, and pipeline applications. It offers a lift capacity of 10,245 lbs. at an 8-foot radius, less attachment weight, along with standard boom options ranging from 22 to 25 feet of reach. A 4-foot Extenda-Boom option provides up to 26 feet of overall reach, while A-frame stabilizers with a 112-inch spread at grade level help provide dependable support on the job. Proudly made in the U.S.A., the 75XR is built to deliver efficient material handling in demanding work environments.

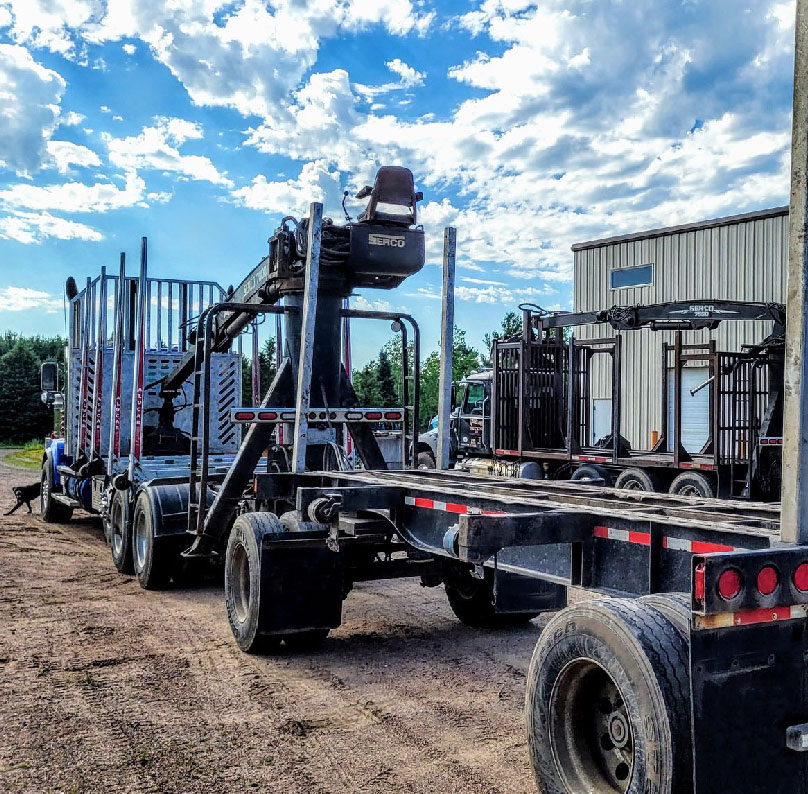

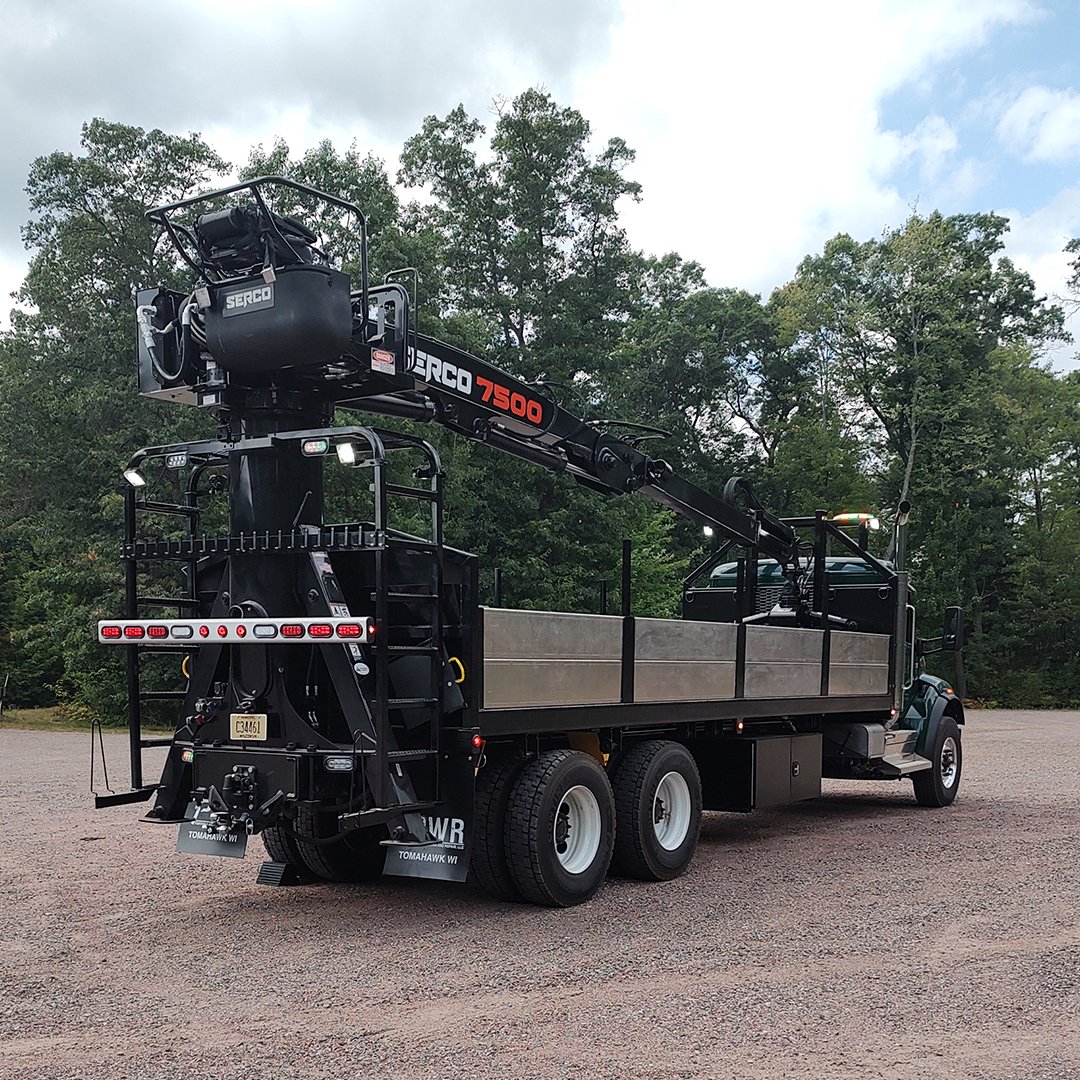

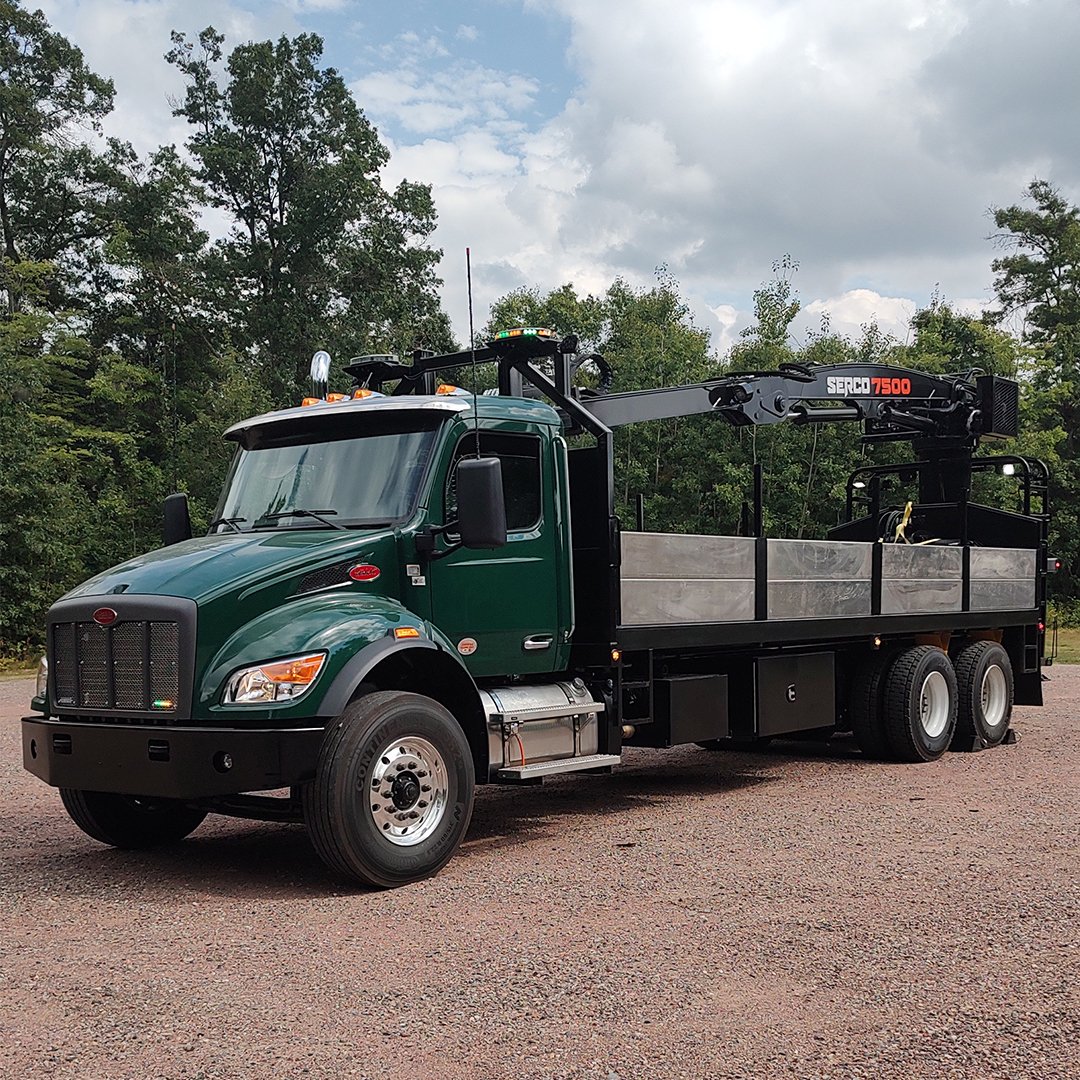

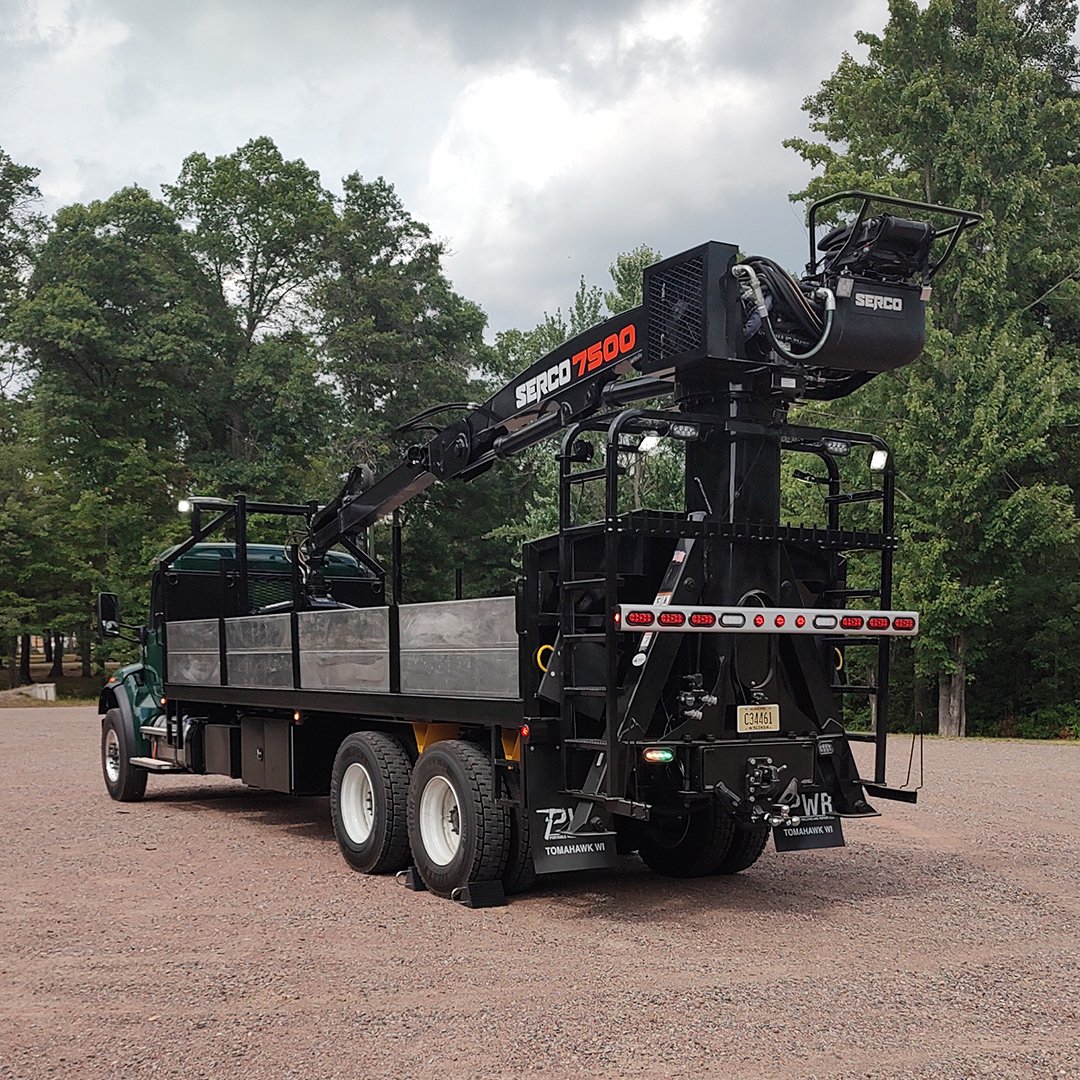

The Serco 7500 Knuckleboom Loader delivers added lifting capacity, bolt-on cylinder heads, high-strength pins and bushings, and a range of available options to support demanding material-handling applications. Its lightweight design, fast operation, strength, and reliability make it a strong fit for a variety of industries. Designed as a log knuckleboom loader, the 7500 features continuous rotation and an available 4-foot Extenda-Boom option for added versatility. It offers a lift capacity of 7,880 lbs. at an 8-foot radius, less attachment weight, with standard boom reach options from 22 to 25 feet and up to 29 feet of overall reach with the Extenda-Boom option. A-frame stabilizers with a 112-inch spread at grade level help provide dependable support, and the loader is proudly made in the U.S.A.

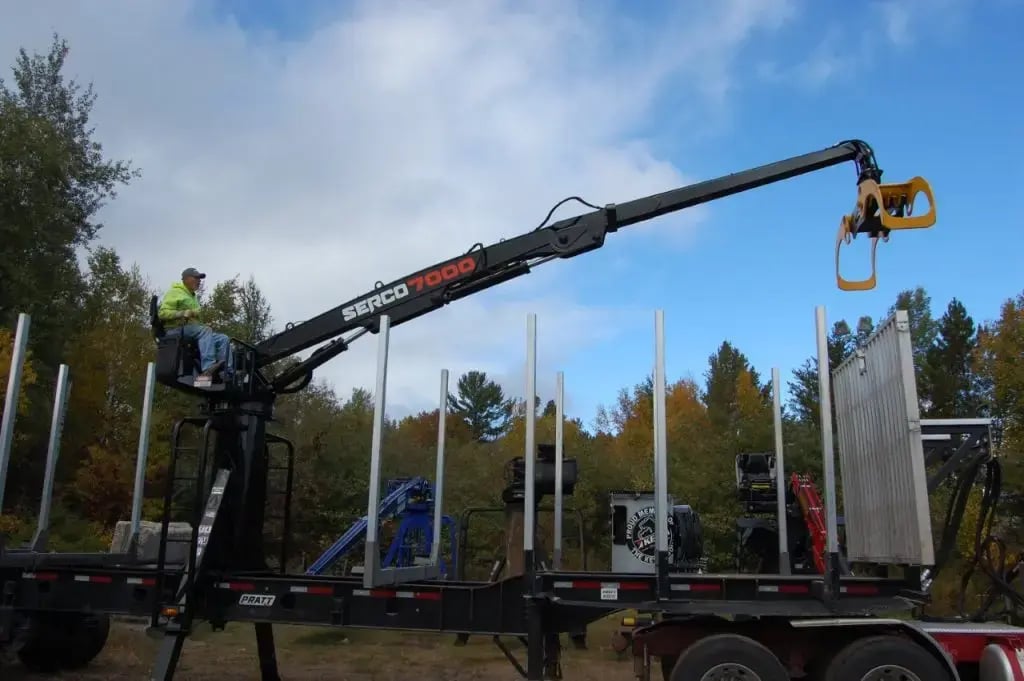

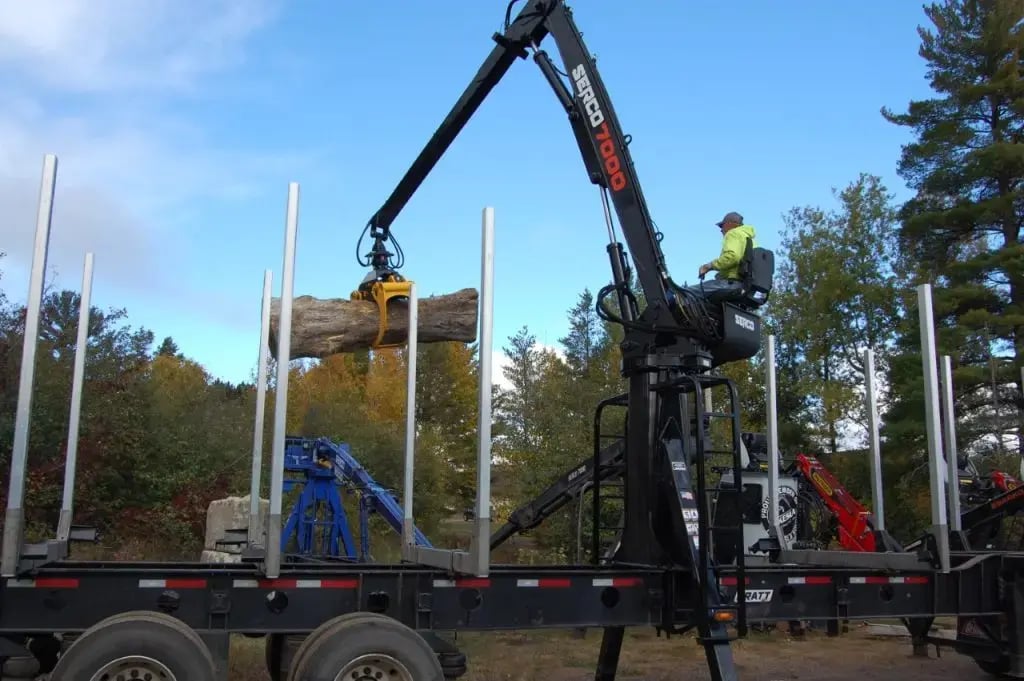

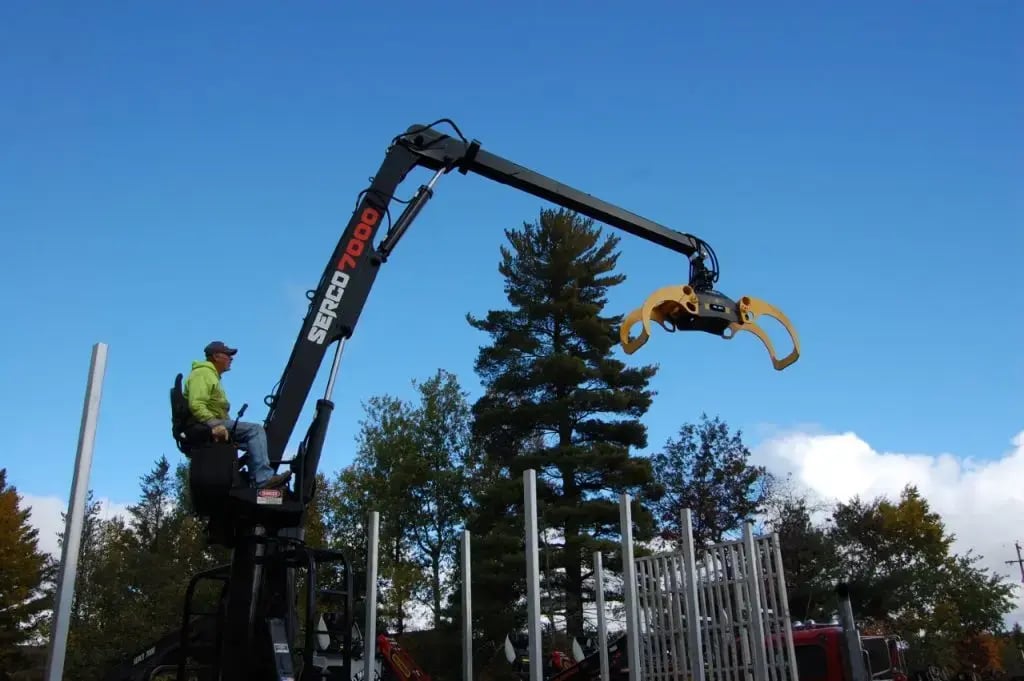

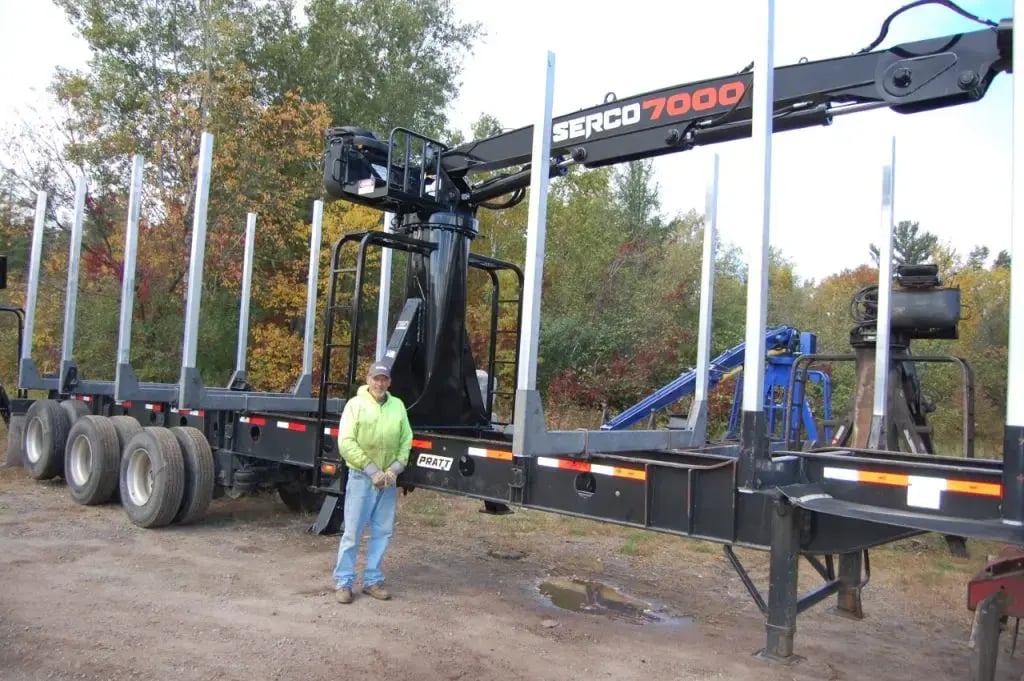

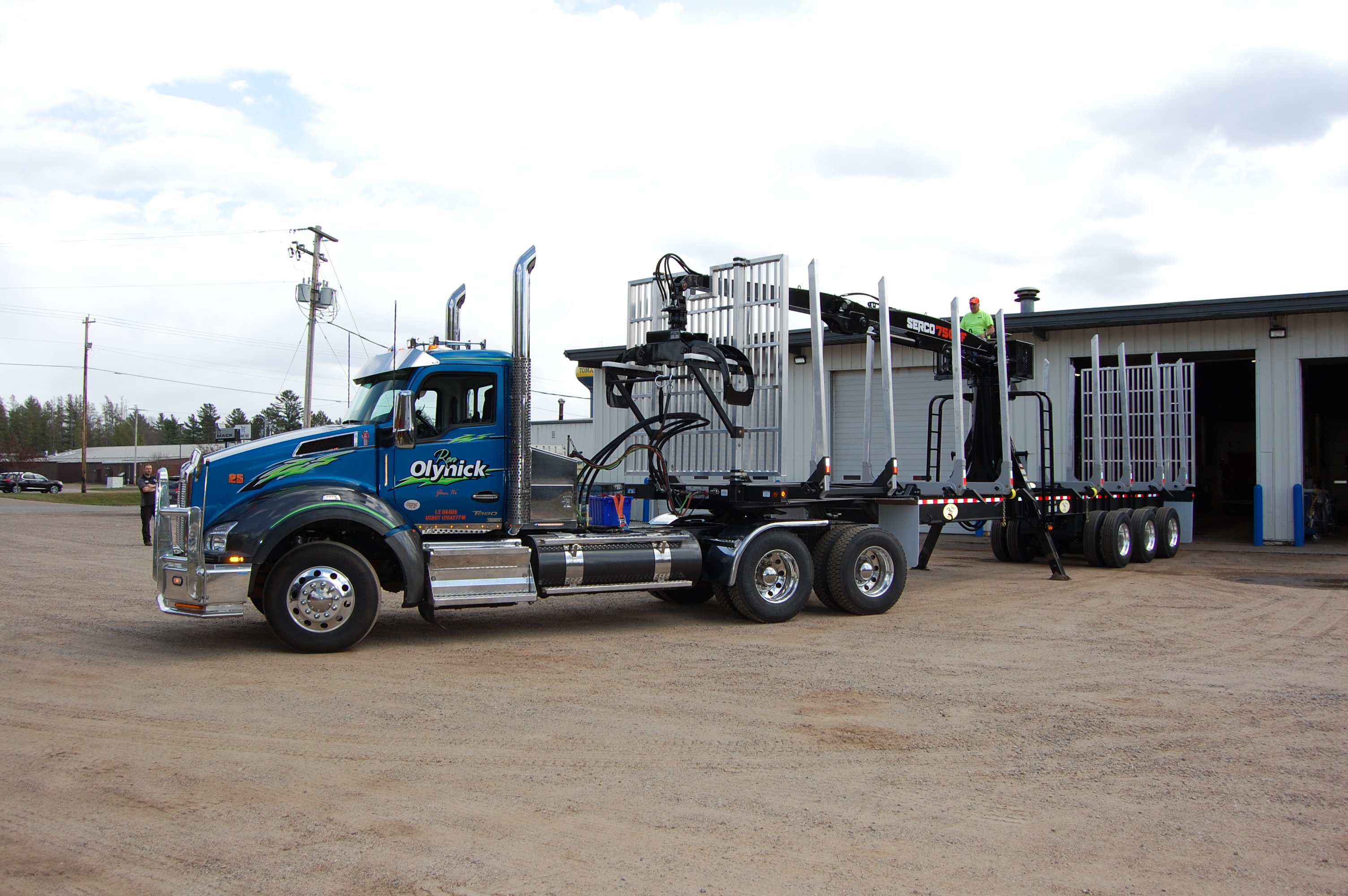

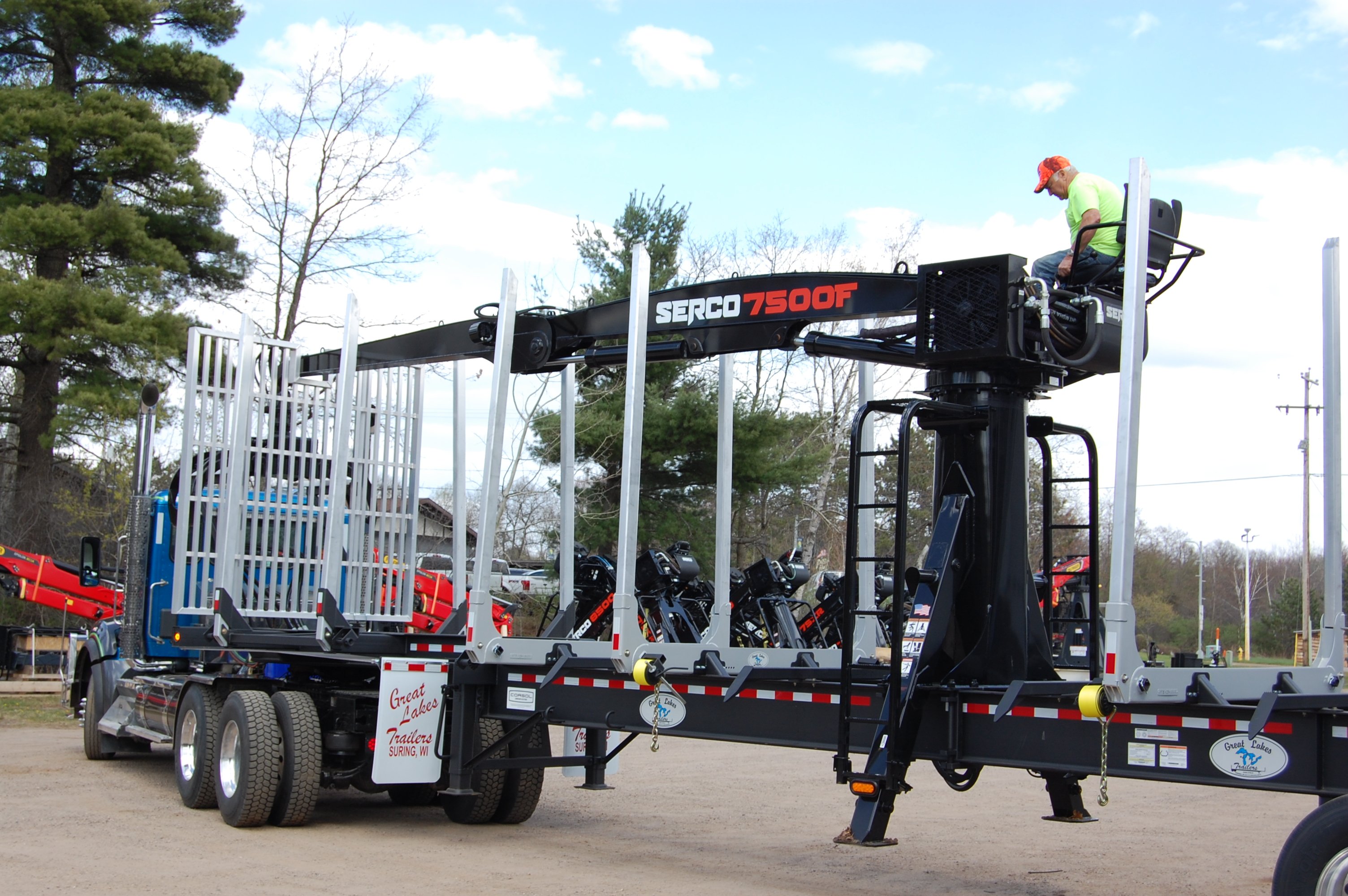

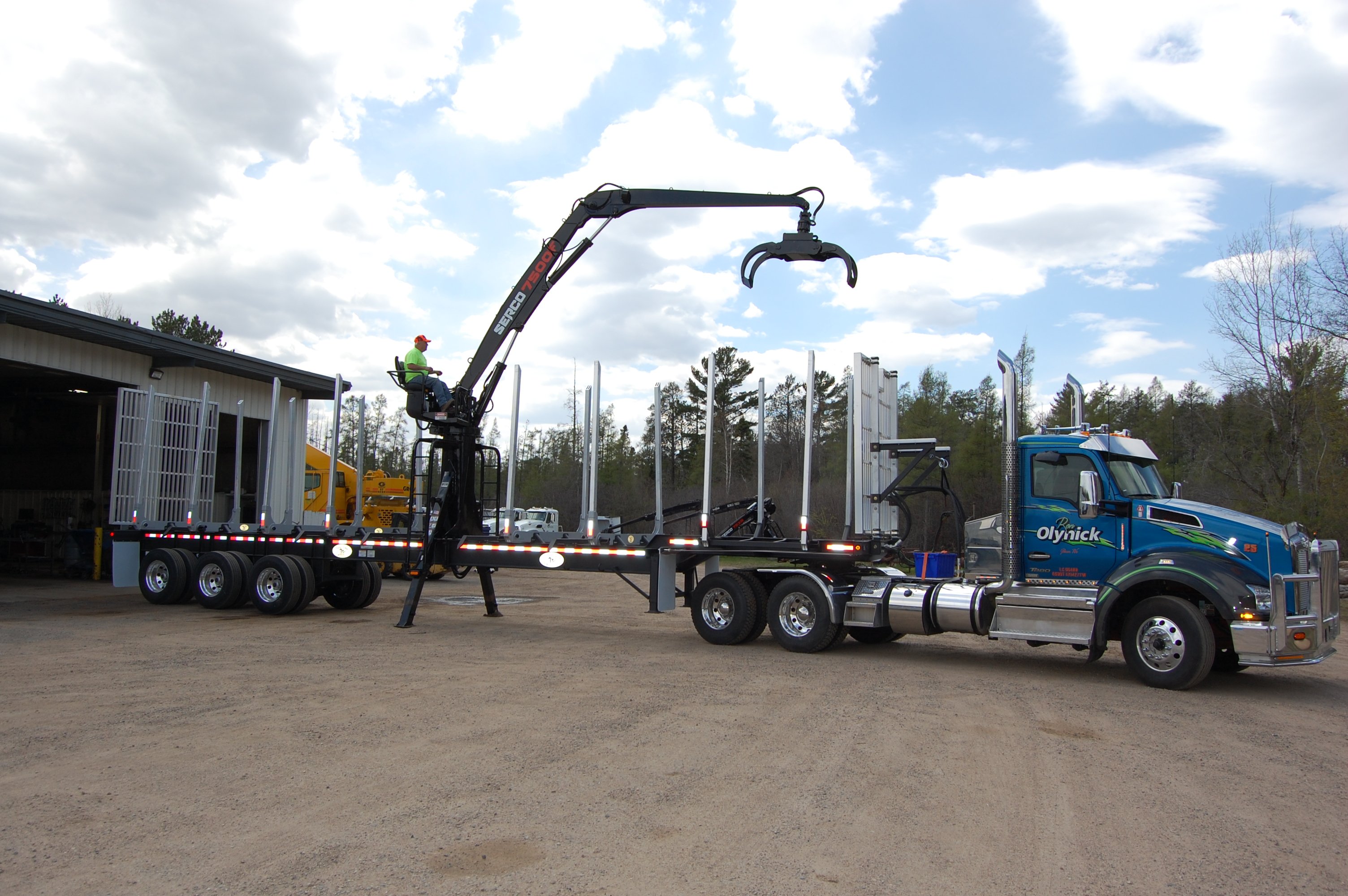

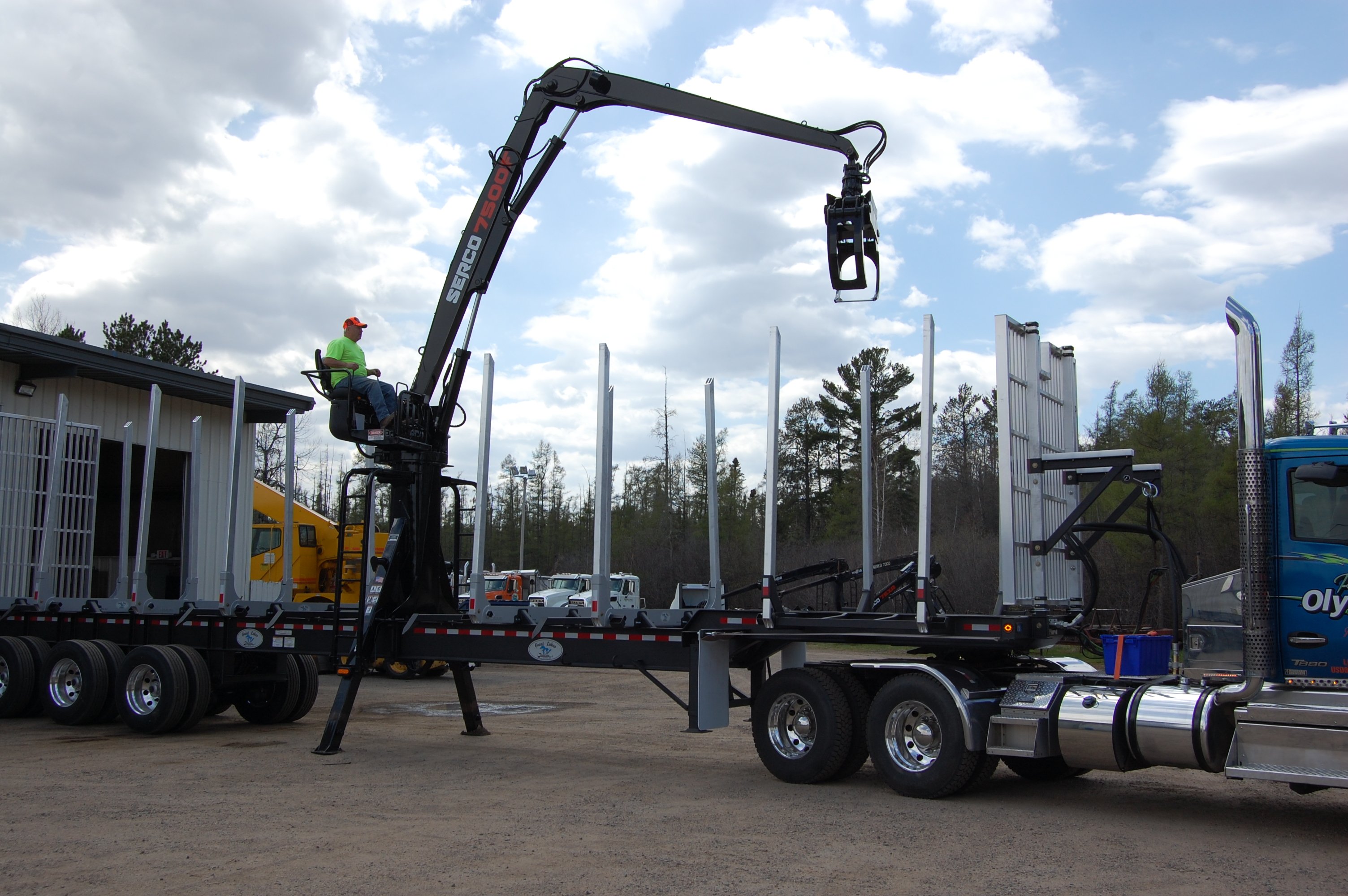

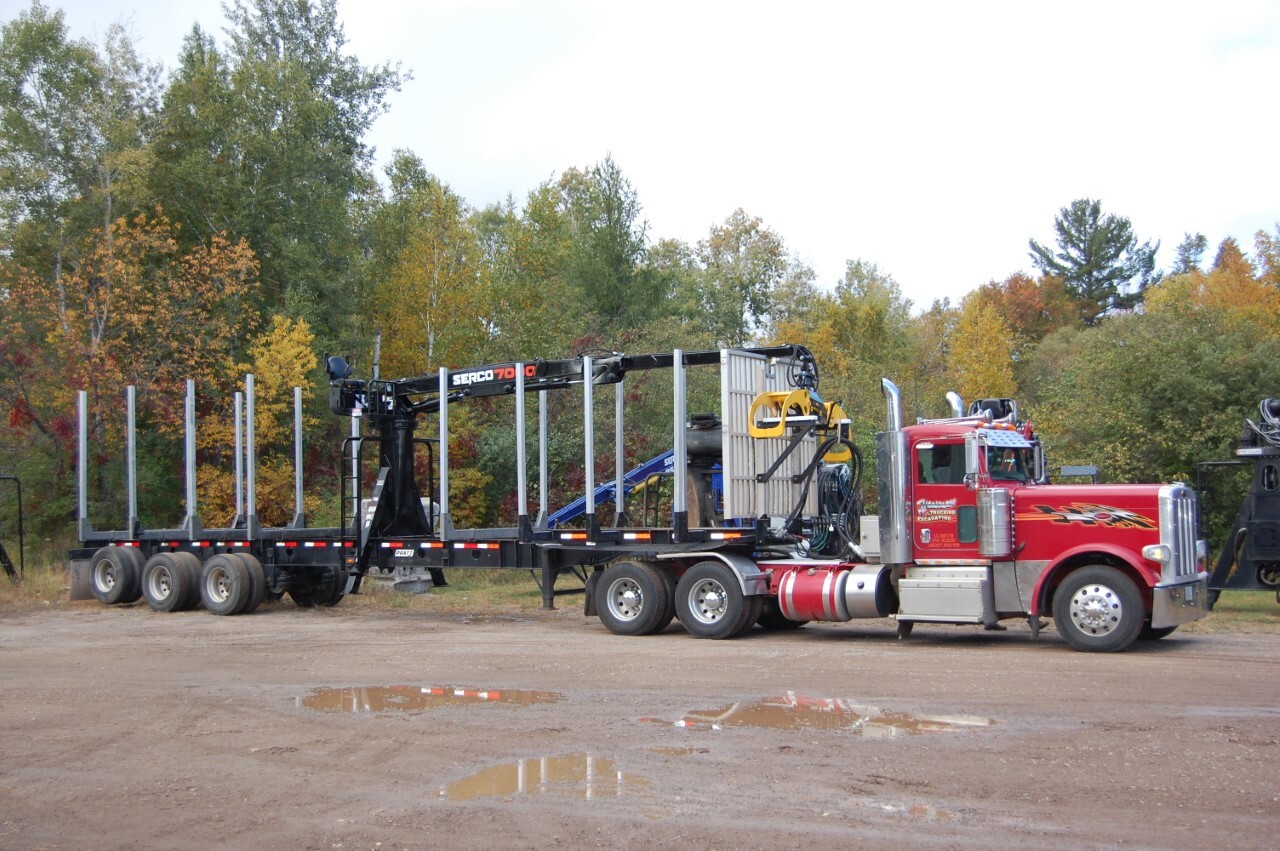

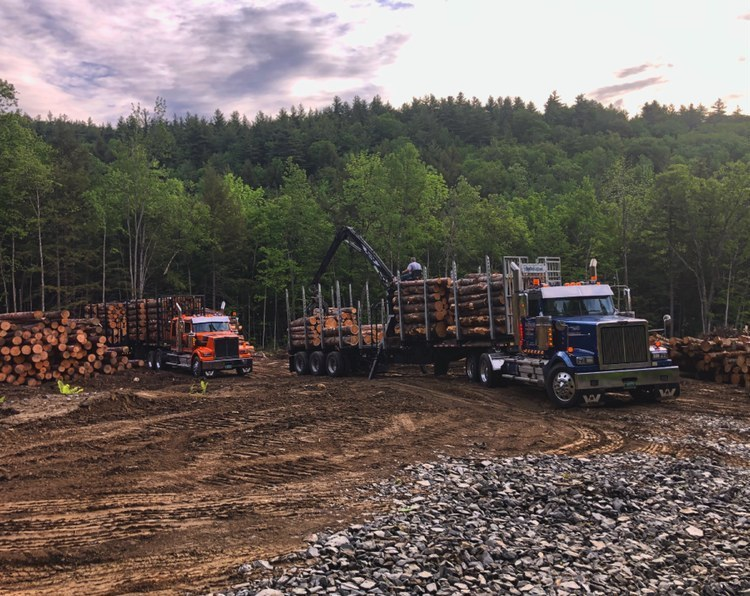

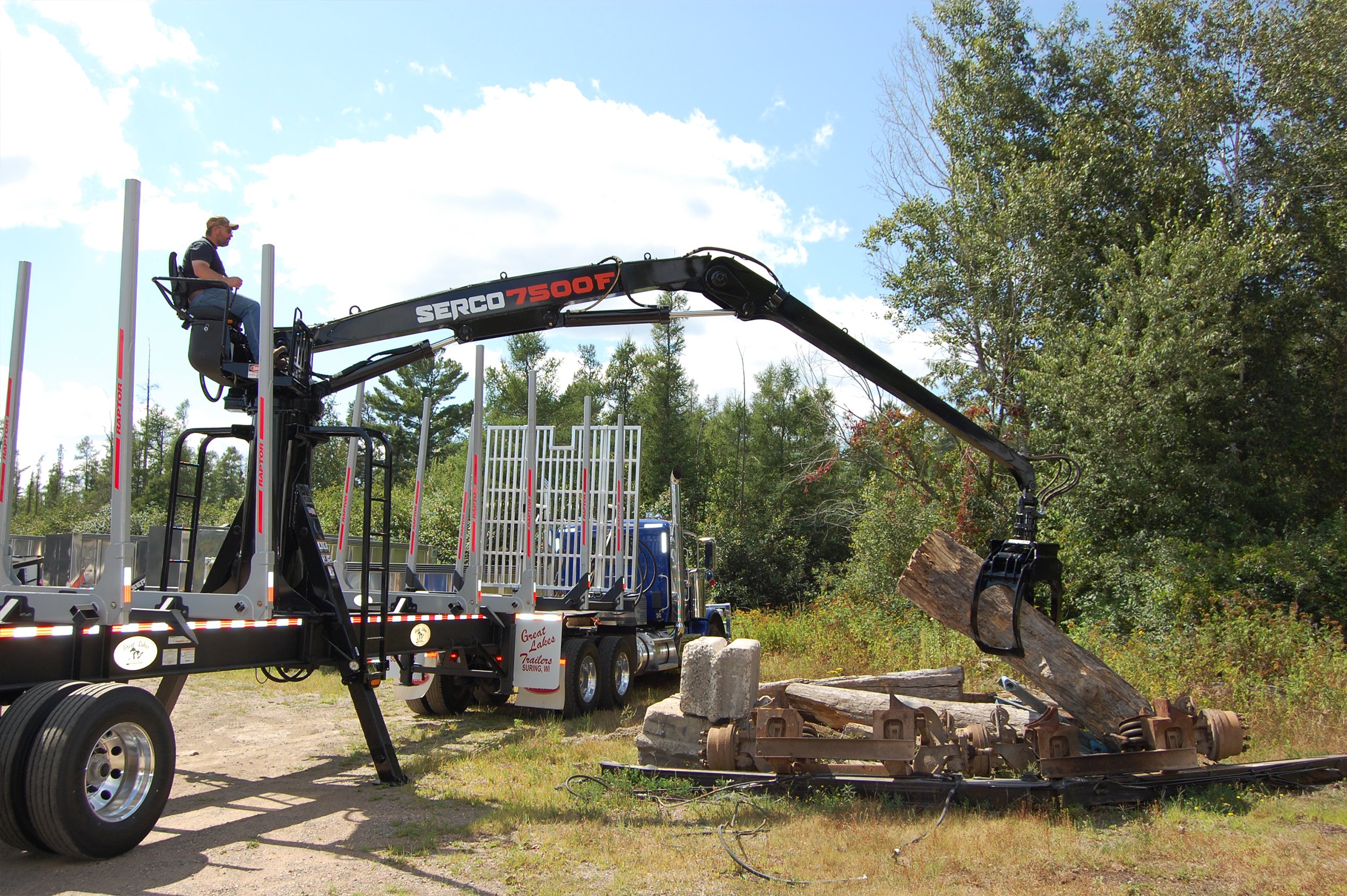

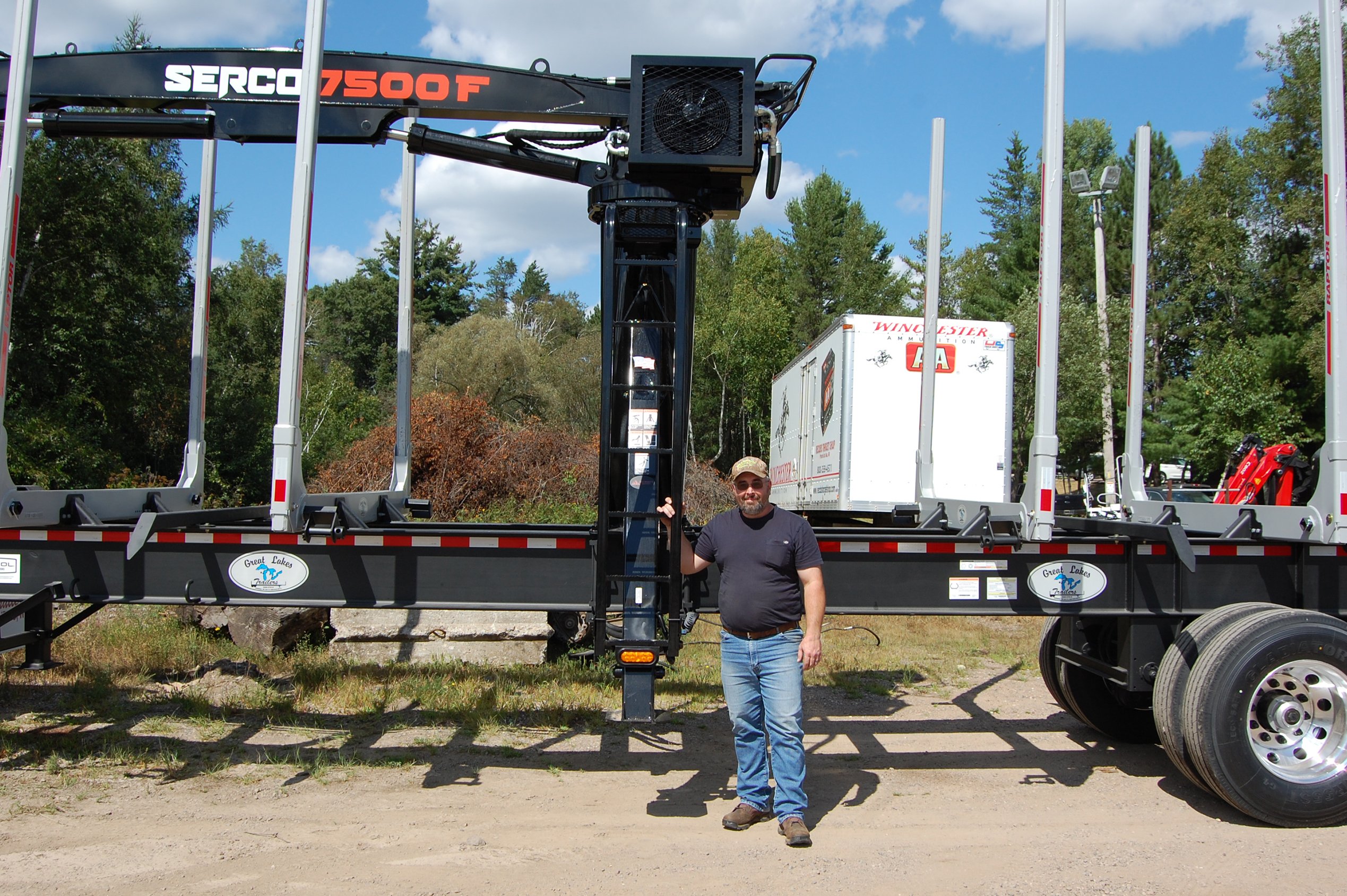

Modeled after the popular SERCO 7000, the SERCO 7500F Knuckleboom Loader offers added lifting capacity, bolt-on cylinder heads, larger-diameter pins and bushings, and a range of available options. Its lightweight design, speed, strength, and reliability make it a versatile choice for a variety of industries and material-handling applications. The 7500F delivers a lift capacity of 7,880 lbs. at an 8-foot radius, less attachment weight, with standard boom options ranging from 22 to 25 feet of reach. A-frame stabilizers with a 112-inch spread at grade level provide dependable support, and the loader is proudly made in the U.S.A.

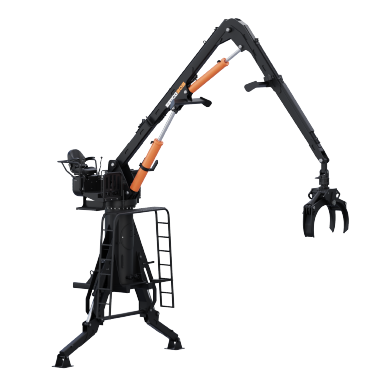

The Serco 205 Knuckleboom Loader combines smooth, precise handling with more than 10 tons of lifting capability, making it a dependable solution for moving heavy materials, utility poles, and other demanding loads. It delivers a lift capacity of 20,600 lbs. at a 10-foot radius, less attachment weight, and offers a standard boom configuration with 25 feet of reach. An available 4-foot Extenda-Boom increases overall reach to 29 feet for added versatility. Fold-down stabilizers with a 187-1/2-inch spread at grade level provide solid support on the job, and the Serco 205 is proudly made in the U.S.A.

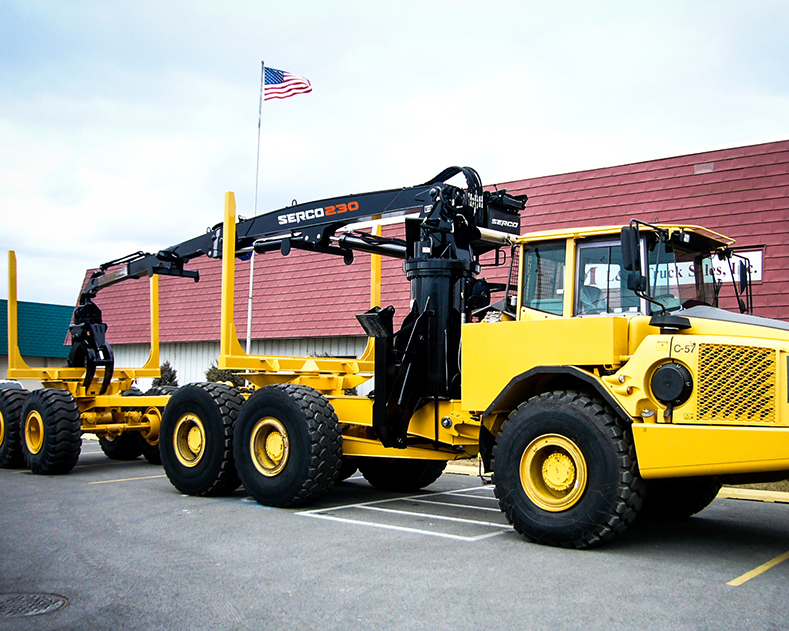

The Serco 230 Knuckleboom Loader combines smooth, precise handling controls with more than 23,000 lbs. of lifting capability, making it a powerful solution for moving heavy materials and large utility poles. It delivers a lift capacity of 23,600 lbs. at a 10-foot radius, less attachment weight, and includes a standard boom option with 25 feet of reach. An available 4-foot Extenda-Boom increases overall reach to 29 feet for added versatility. Fold-down stabilizers with a 186-1/4-inch spread at grade level provide dependable support on the job, and the Serco 230 is proudly made in the U.S.A.

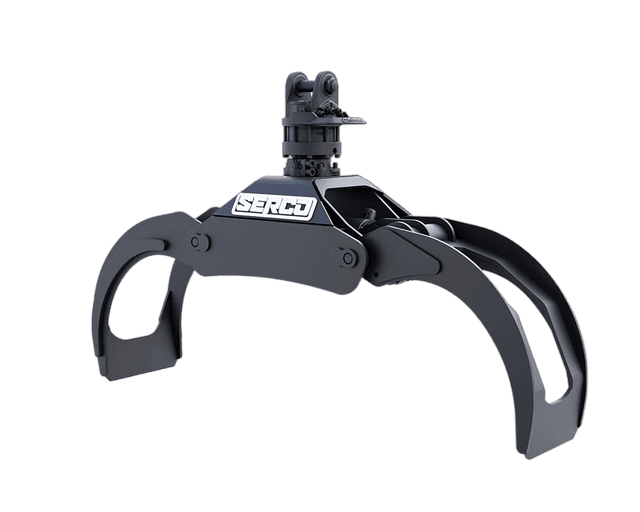

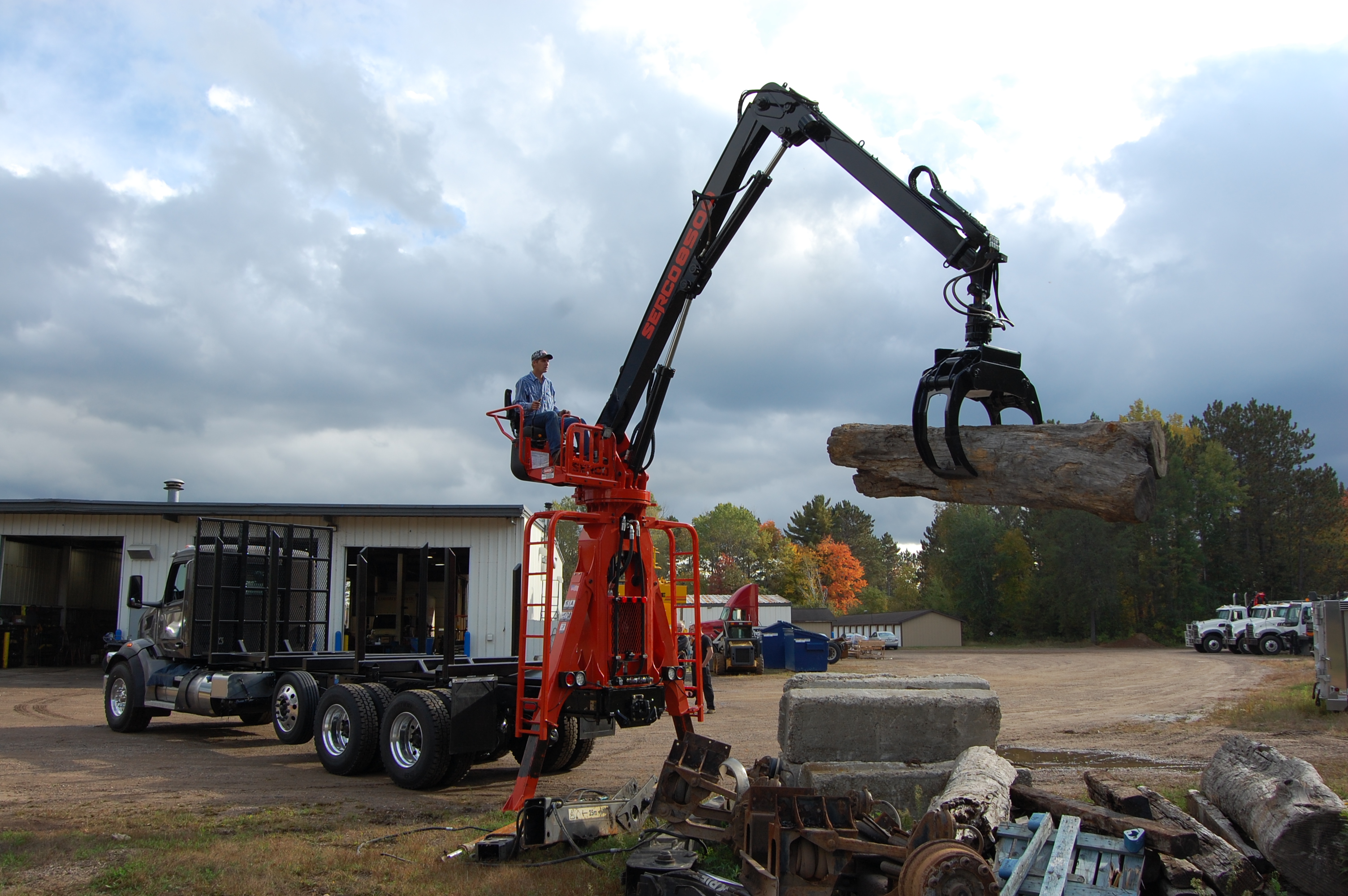

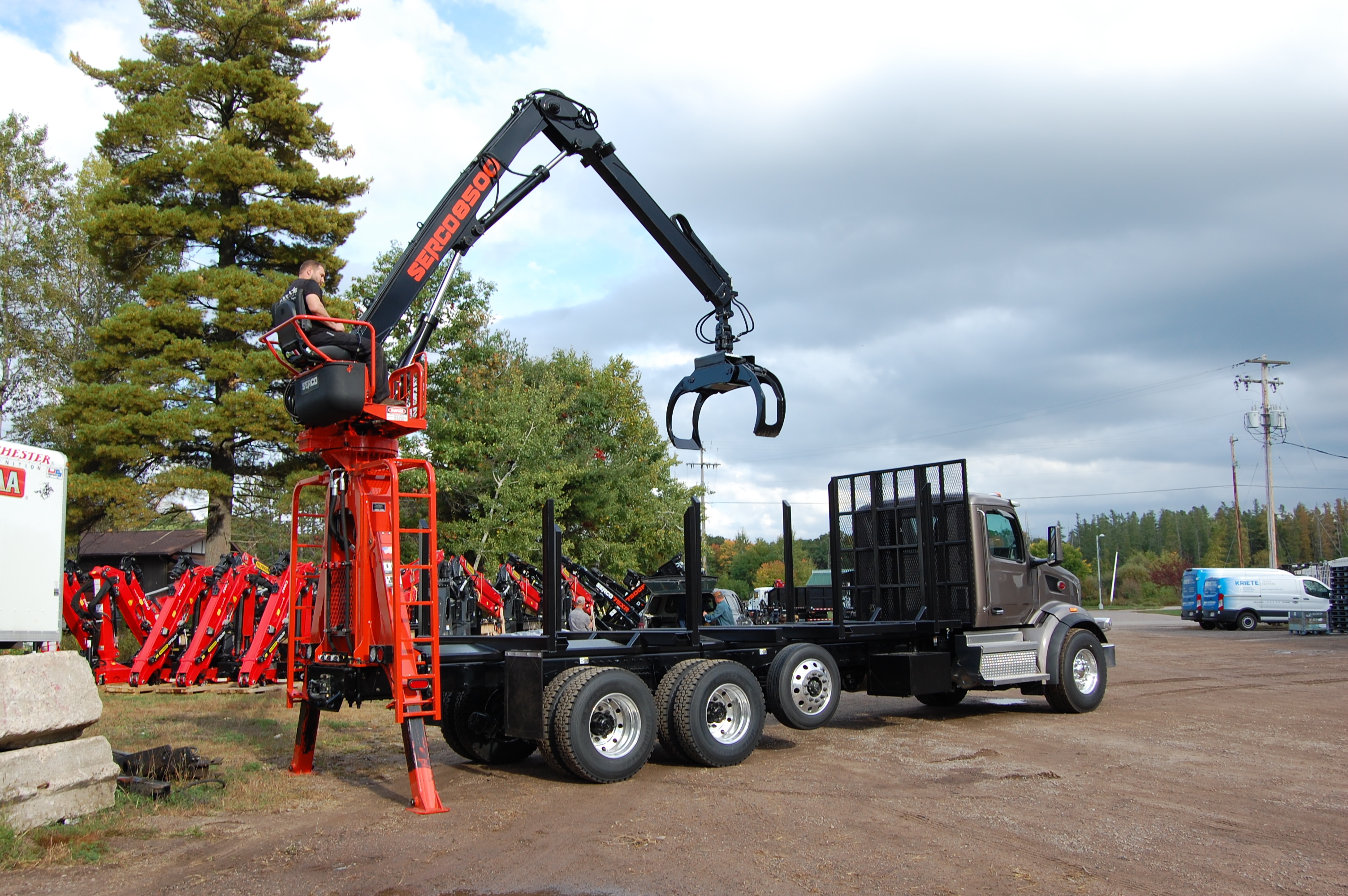

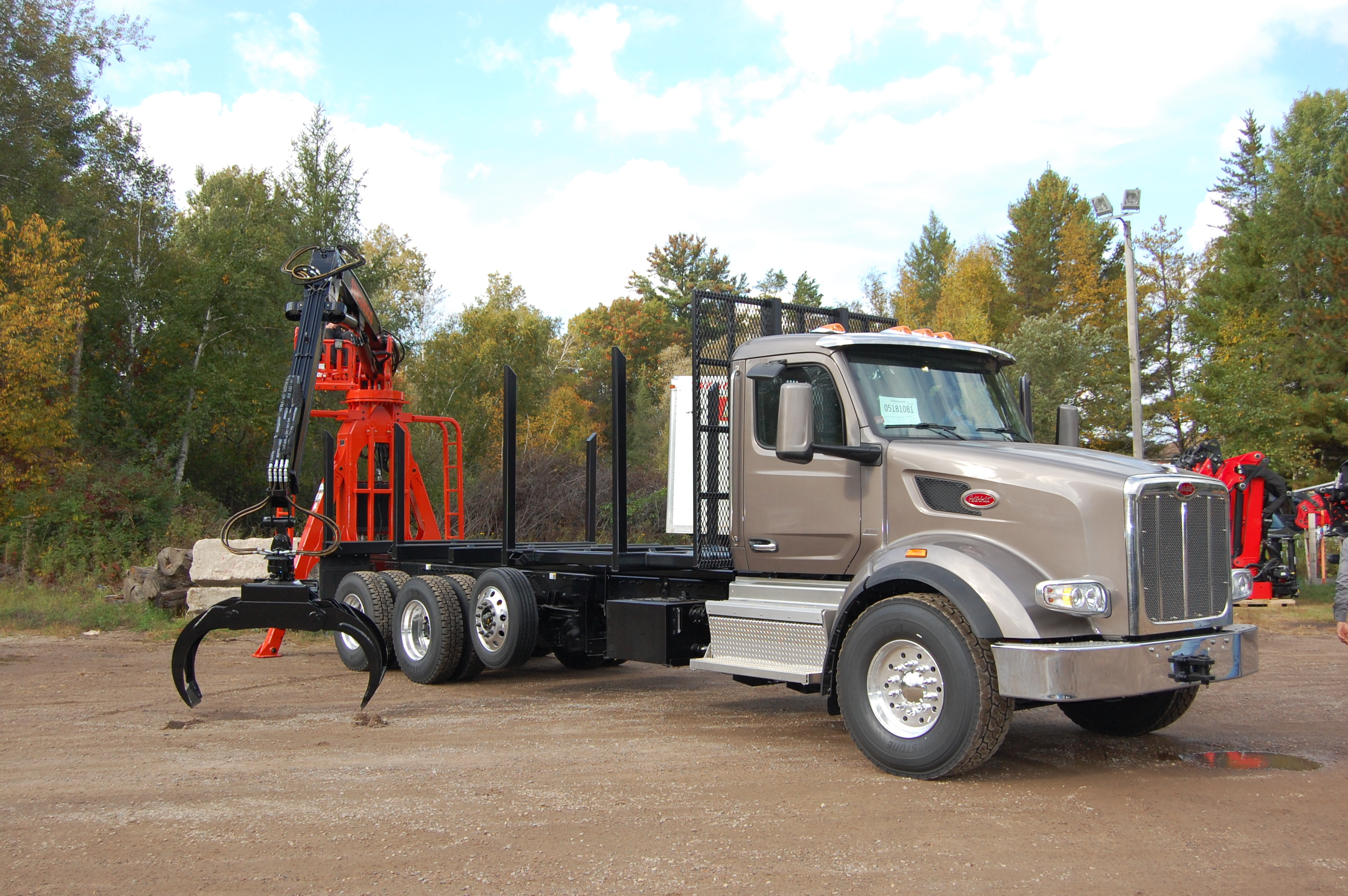

Serco Combination Grapples are designed to meet the needs of forestry, logging, pole handling, and mill operations. Featuring wide tines for added stability and bypassing arms for enhanced rolling, these grapples provide precise handling of individual logs and utility poles. Single- and dual-cylinder options are available, along with continuous rotation for efficient positioning. Models are offered in 1/4-cord, 1/3-cord, and 1/2-cord capacities, and each is proudly made in the U.S.A.

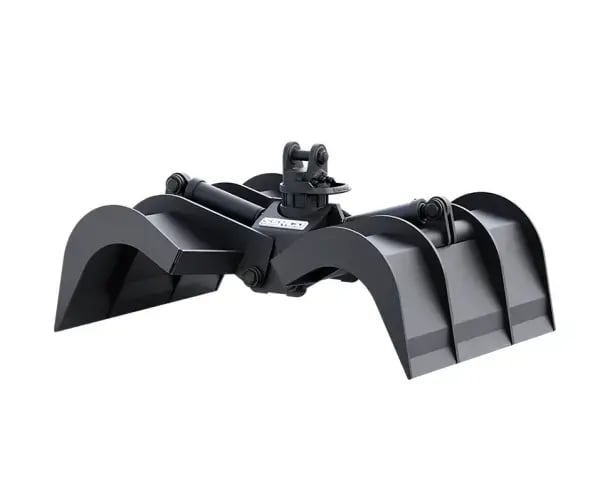

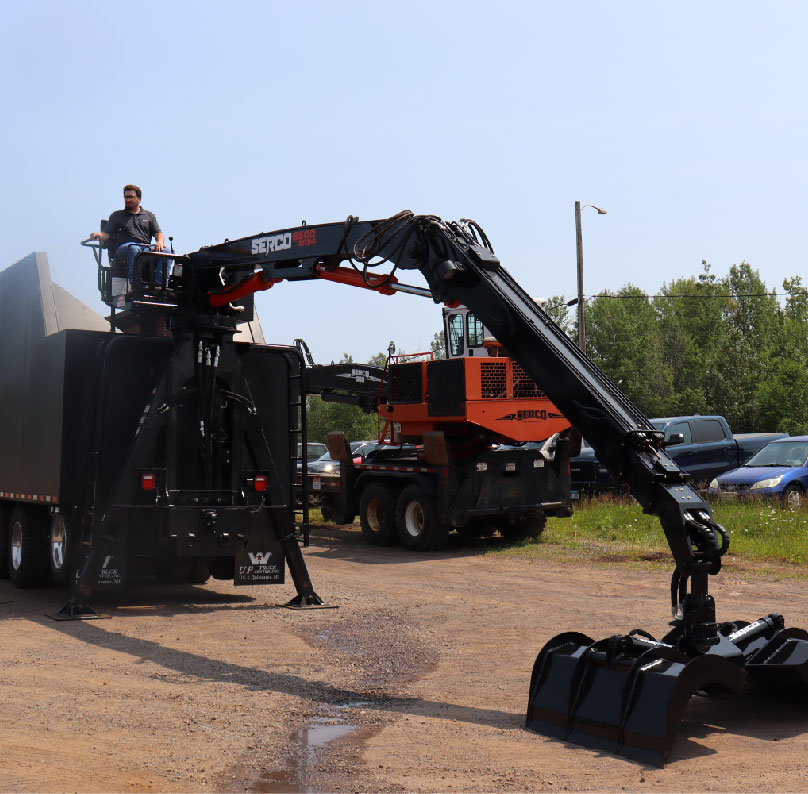

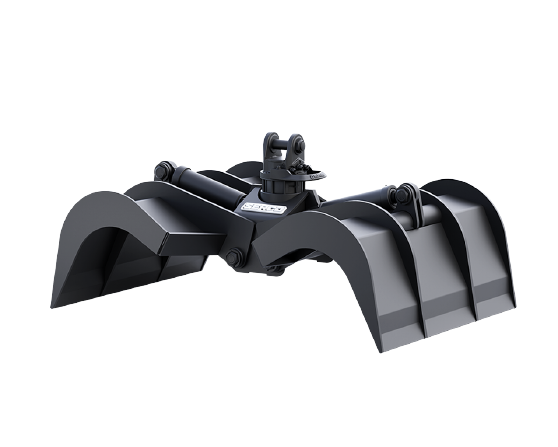

The Serco Trash Grapple is designed to support disaster relief and waste management industries. It excels in collection and handling of trash, debris, and waste materials. The trash grapples are designed with the rotator sitting inside of rather than on top of the head, making the grapple shorter and allowing for a more compact footprint when stowed. Get unmatched efficiency by pairing the Serco trash grapple with our Serco 8500SR knuckleboom loader. Use the grapple for the applications of storm clean up, municipal waste, recycling, and brush clearing. Available in the sizes of 36”, 42” and 48” width.

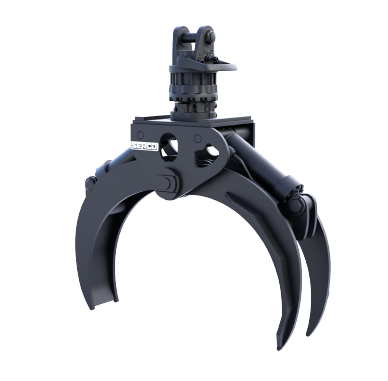

 The Serco Log Grapple is designed for forestry, logging, and pole-handling applications. Its bypassing-arm design provides exceptional rolling capability for logs and utility poles while allowing for precise handling of individual materials. Continuous rotation supports efficient positioning on the job, and models are available in 35-, 42-, 46-, and 52-inch configurations. Proudly made in the U.S.A., the Serco Log Grapple is built for dependable performance in demanding work environments.

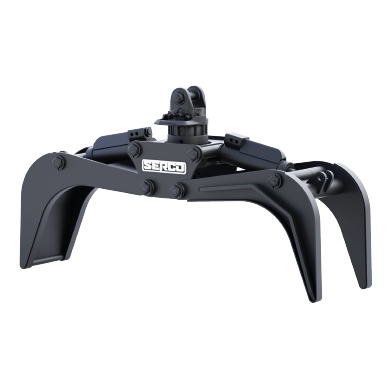

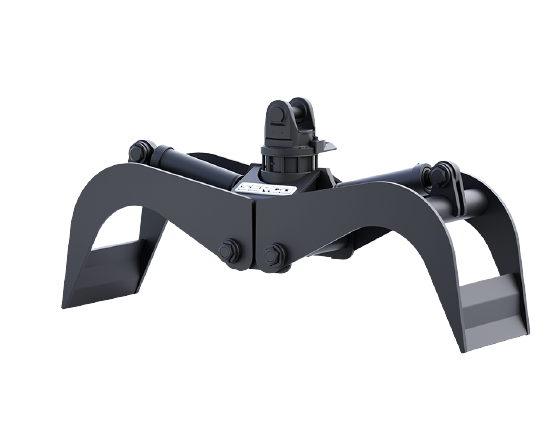

The Serco Pulpwood Grapple is designed for handling short wood lengths in forestry, logging, and mill applications. Its butt-style design provides exceptional rolling capability for logs, while continuous rotation supports efficient material positioning on the job. Available in 1/4-cord and 1/3-cord models, the Serco Pulpwood Grapple is proudly made in the U.S.A.
